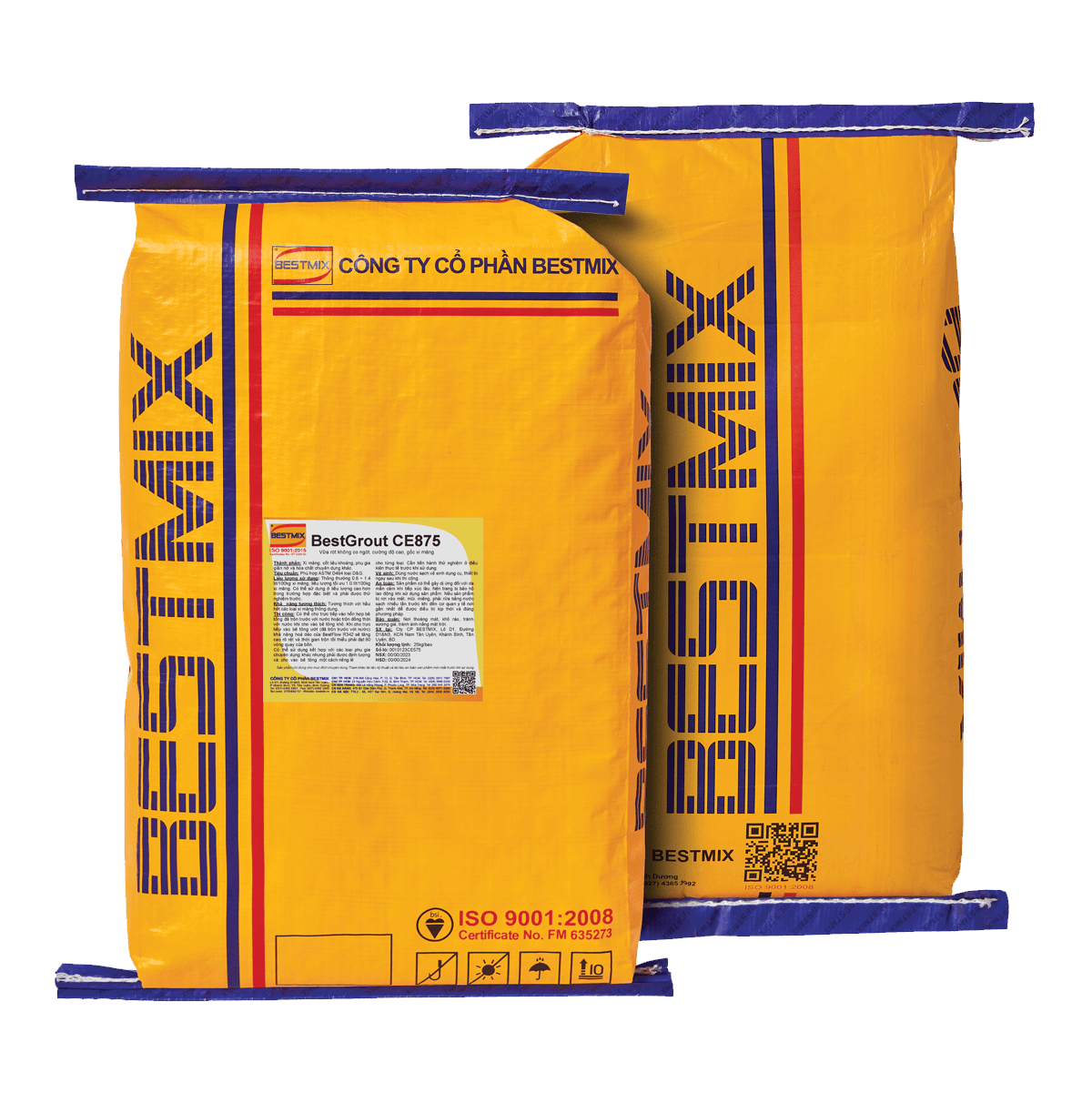

BestGrout CE875
No shrinkage Grout, high strength, modified polymer-cement based.
Advantages:
- Very high and consistent mechanical properties.
- Excellent workability, and flow ability.
- Good self-leveling, and compacting characteristics.
- Non-shrinking, expanding mortar.
- Very easy application.
- Non-toxic.
- Chloride-free, non-corrosion to reinforced steel bars.
BestGrout CE875
Technical summary
Category
Materials For Other Industries
No shrinkage Grout, high strength, modified polymer-cement based.
Technical documents
Product data
| Color/Supply form | Cement grey color/Dry powder. |
|---|---|
| Package | 25 kg/bag. |
| Shelf life | 12 months from the produced date in the right storage conditions. |
| Bulk density | 1.6 kg/liter |
| Specific density | Dry powder: 2.85 kg/liter grout: 2.20 kg/liter |
| Consumption | 1.92 kg/liter. Need 77 bags for 1m3 mortar. |
| Application temperature | Minimum ambient temperature to apply: 15oC |
| Waterproof resistance | Reinforce the waterproof resistance for structures. |
| Mechanical strength | Increase the mechanical impact resistance. |
| Application time | Within 15 minutes after mixing. |
| Properties | Value |
| Water content (%) | 11 ± 1 |
| Flowing (mm) | 230 ÷ 320 |
| Expansion at 1;3;14;28 days(%) | 0 ÷ 0.3 |
| Compressive strength (MPa) 1 day * 3 day * 7 day * 28 day ** | ≥ 30 ≥ 50 ≥ 65 ≥ 85 |
Applications
Surface preparation:
- The surface must be clean, solid, and free from grease or impurities, and must be treated as leaking before (if any). The water absorption surface must be saturated to avoid water loss locally and reduce the flow of materials in the application process.
Mixing:
-
BestGrout CE875 powder is added slowly to the mixing water to achieve flexibility (viscosity) as required. However, typically, the optimum mixing water is 11% compared to the weight of powder (2.75 liters of water per 25 kg bag of BestGrout CE875). Use a paddle mixer with a speed of 500-600 revolutions /minute to mix the compound until achieving the homogeneous as required (about 3 minutes).
Applying:
- After mixing, use an iron trowel to stir lightly for a few seconds to release air bubbles. Then, pour the compound immediately into the prepared framework continuously to maintain the pressure necessary for filling the material layer to avoid air entrapment in the structure.
- Note: The framework must be checked and guaranteed not to leak water during application and before the compound gets cured. Do not use materials that application time over.
Important notes:
- The product is applied to the minimum clearance of structure is 8 mm.
- Curing procedures should be ensured strictly as products originating from other cement.
- When applying to large structures with a thickness greater than 60 mm, to save materials and reduce the heat of hydrolysis, hydration should add large aggregates carefully selected ( such as gravel, small stone 1x1) which is the quantity from 50÷100% and the mixing water is not over 12% to the initial weight of BestGrout CE875. Should be tested before application.
Cleaning:
-
Clean tools and equipment with water before the mixed grout hardens.
Safety:
- BestGrout CE875 is alkaline like normal cement and can cause skin irritations to persons with sensitive skin. Wear gloves and masks while handling the product. In case of accidental eye contact, wash with fresh water and seek medical advice immediately.
Advantages
- Very high and consistent mechanical properties.
- Excellent workability, and flow ability.
- Good self-leveling, and compacting characteristics.
- Non-shrinking, expanding mortar.
- Very easy application.
- Non-toxic.
- Chloride-free, non-corrosion to reinforced steel bars.
Application instruction
Điều kiện bề mặt:
- Bề mặt phải sạch, đặc chắc, không dính dầu mỡ hoặc các tạp chất khác. Bề mặt phải được xử lý chận nước rò rỉ trước (nếu có). Các bề mặt hút nước phải được bão hòa nước bề mặt nhằm tránh hiện tượng mất nước cục bộ làm giảm độ chảy của vật liệu trong quá trình thi công.
Trộn:
-
Bột BestGrout CE875 được thêm từ từ vào lượng nước trộn đã được định lượng trước để đạt độ linh động (độ sệt) cần thiết cho quá trình thi công. Thông thường, lượng nước trộn tối ưu là 11% so với trọng lượng bột (2.75 lít nước cho một bao 25 kg). Dùng máy trộn cánh khuấy có tốc độ 500-600 vòng/phút để trộn hỗn hợp cho đến khi đạt được độ đồng nhất theo yêu cầu thi công (khoảng 3 phút).
Thi công:
- Sau khi trộn đều, dùng bay sắt khuấy nhẹ trong vài giây để bọt khí thoát ra nhanh. Sau đó rót hỗn hợp ngay vào ván khuôn đã chuẩn bị trước một cách liên tục nhằm duy trì áp suất cần thiết cho lớp vật liệu đang đổ rót nhằm tránh hiện tượng ngậm khí trong kết cấu.
- Lưu ý: Ván khuôn phải được kiểm tra và đảm bảo không bị rò rỉ nước trong suốt quá trình thi công và trước khi hỗn hợp đóng rắn. Không sử dụng lượng vật liệu đã quá thời gian cho phép thi công.
Lưu ý quan trọng:
- Sản phẩm được ứng dụng cho các kết cấu có độ hở tối thiểu 8 mm
- Quy trình bảo dưỡng phải được đảm bảo nghiêm ngặt như các sản phẩm có nguồn gốc từ xi măng khác.
- Khi ứng dụng cho các kết cấu lớn có độ dày lớn hơn 60 mm, nhằm tiết kiệm vật tư và giảm nhiệt lượng thủy hóa, nên thêm cốt liệu kích thước lớn được chọn lọc kỹ như: sỏi, đá 1x1, … Lượng cốt liệu kích thước lớn thêm vào từ 50÷100% và lượng
nước trộn tối đa không quá 12% so với trọng lượng BestGrout CE875 ban đầu. Phải tiến hành thử nghiệm trước khi sử dụng
Vệ sinh:
-
Vệ sinh dung cụ bằng nước sau khi thi công và trước khi vật liệu đóng rắn.
An toàn:
- Vật liệu có tính kiềm do đó có thể gây dị ứng da khi tiếp xúc trực tiếp. Khi thi công nên mang găng tay cao su, kính bảo hộ lao động và khẩu trang. Nếu sản phẩm bị văng vào mắt, phải rửa bằng nước sạch nhiều lần và đến cơ quan y tế nơi gần nhất để được điều trị kịp thời và đúng cách.
